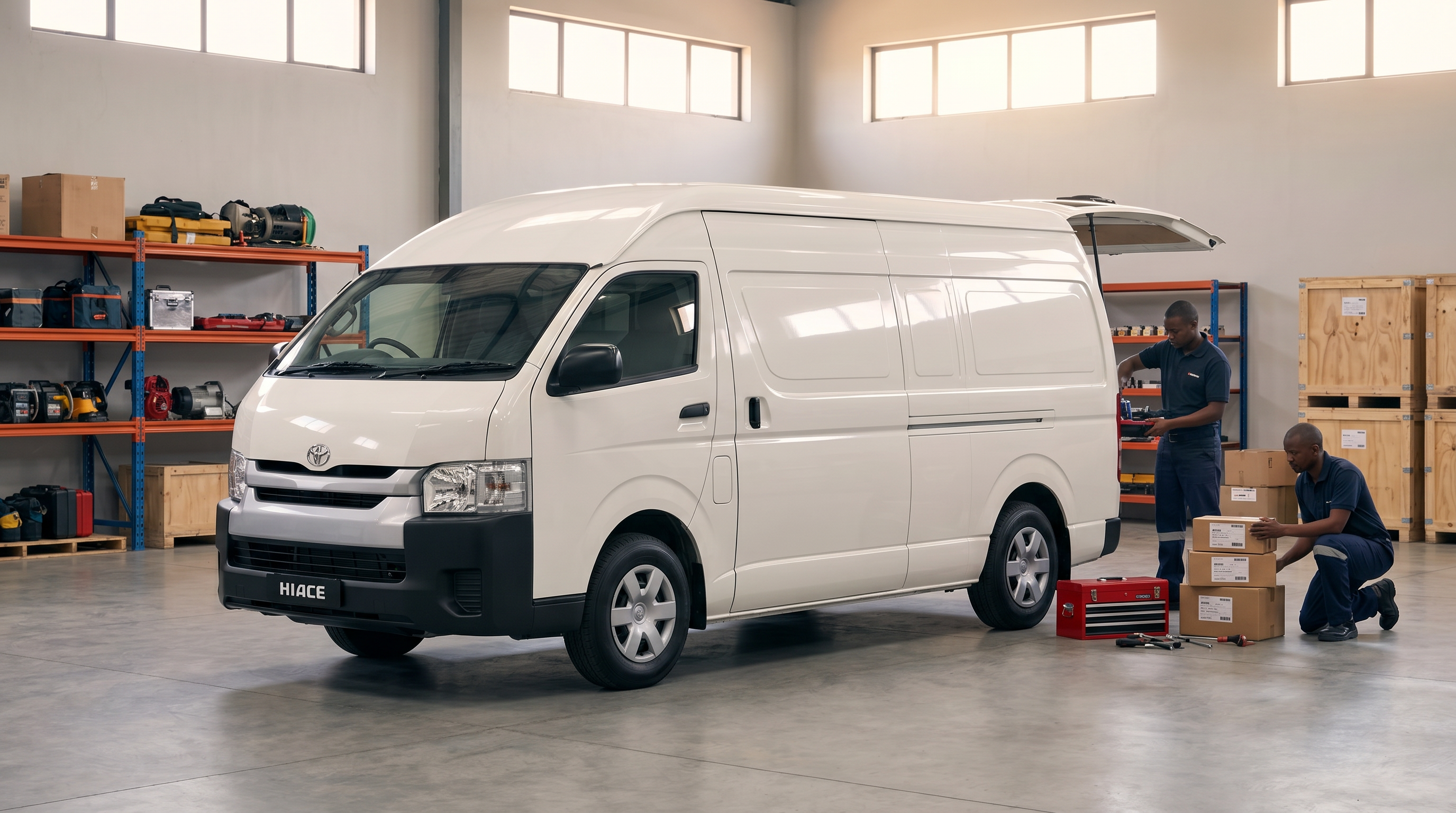

Hiace van
Technical Specifications
Models available
3.0L VAN 3-Seats A/C
Hiace Van 3.0L VAN 3-Seats A/C
Technical Specifications
 ENGINE |
|
| Displacement (cc) | 2986 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Max power HP/rpm | 92/4000 |
| Max torque Nm | 197 /2400 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
 BODY |
|
| Body style | Van |
| Number of doors | 4 doors |
 DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4695 x 1695 x 1980 |
| Ground clearance (mm) | 195 |
| Wheelbase (mm) | 2570 |
 TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
 WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 1790 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 2800 |
| Number of seats | 3 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
 SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Leaf |
 TYRES |
|
| Tyre dimension | 195R15C |
 PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | 140 |
 FUEL CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
2.5L VAN 3-Seats A/C
Hiace Van 2.5L VAN 3-Seats A/C
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2494 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Max power HP/rpm | 102/3600 |
| Max torque Nm | 260/1600-2400 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
BODY |
|
| Body style | Van |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4695 x 1695 x 1980 |
| Ground clearance (mm) | 195 |
| Wheelbase (mm) | 2570 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 1825 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 2800 |
| Number of seats | 3 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | 140 |
FUEL CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
