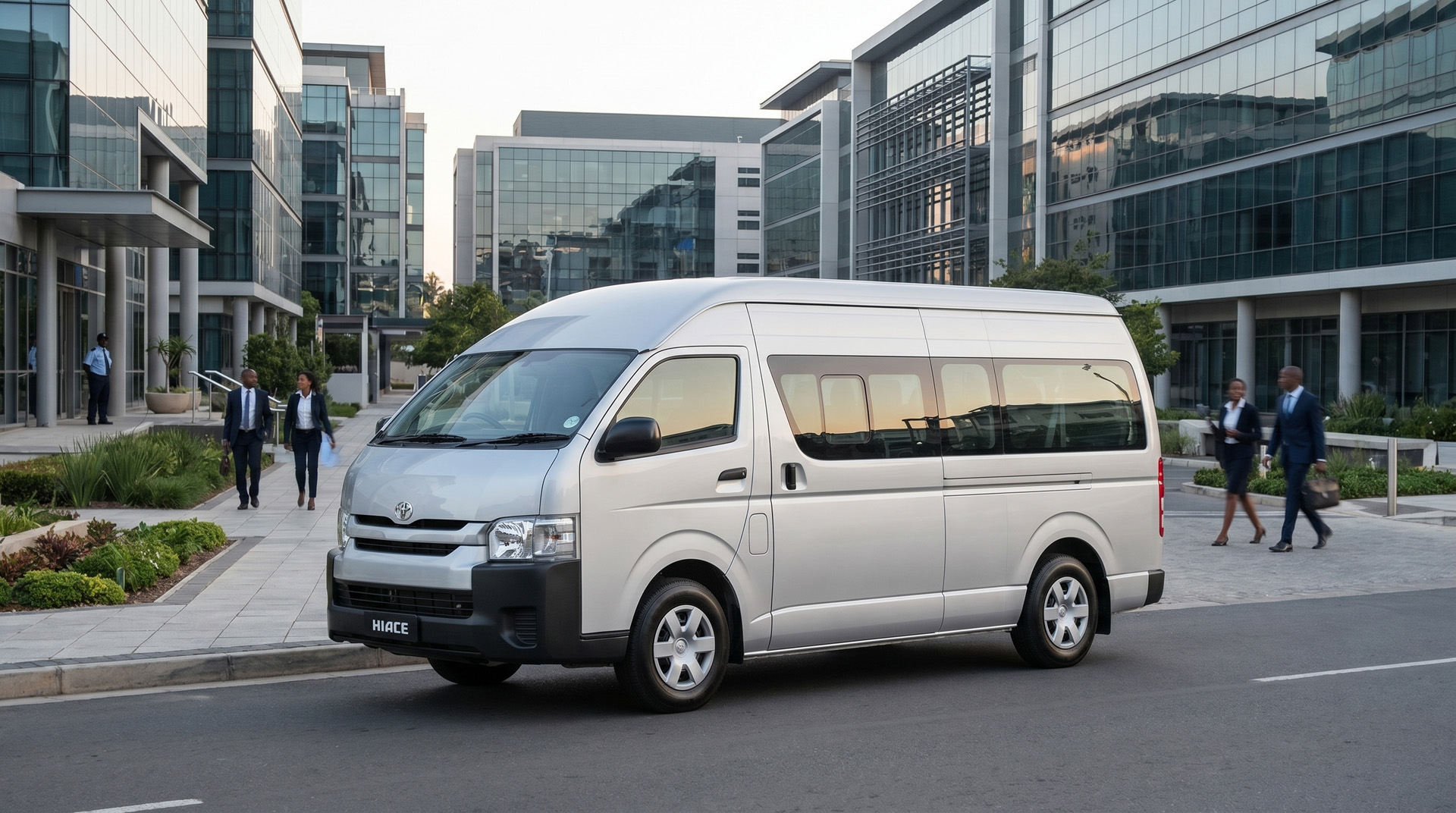

Hiace GD
Technical Specifications
Models available
2.8L Bus DX High roof 16-Seats
Hiace GD 2.8L Bus DX High roof 16-Seats
Technical Specifications
 ENGINE |
|
| Displacement (cc) | 2755 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Diesel |
| Horse power Hp | 156 |
| Max power HP/rpm | 156/3600 |
| Max power kW/rpm | 115/3600 |
| Max torque Nm | 420/1400-2200 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
 BODY |
|
| Body style | Van |
| Keys Type | Classic |
| Number of doors | 4 |
 DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 5915 x 1950 x 2280 |
| Front tread (mm) | 1678 |
| Ground clearance (mm) | 183,5 |
| Rear tread (mm) | 1671 |
| Turning radius (m) | 6,4 |
| Wheelbase (mm) | 3860 |
 TRANSMISSION |
|
| Gearbox | Manual |
 WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 2470 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3820 |
| Number of seats | 16 |
| Payload (kg) | 1200 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Ventilated discs |
 SUSPENSIONS |
|
| Front suspension | MacPherson strut |
| Rear suspension | Leaf |
 TYRES |
|
| Tyre dimension | 235/65 R16C |
 PERFORMANCES |
|
| Max speed (km/h) | 165 |
